CleanPro®-RB
クリーンプロ® / JTEKT Corporation (Official website) / Listed on page 5 of the document
Bearing with heat-resistant fluoropolymer coating, compatible with clean and vacuum environments at 260℃.
Last verified: (date the content was verified against the source document)

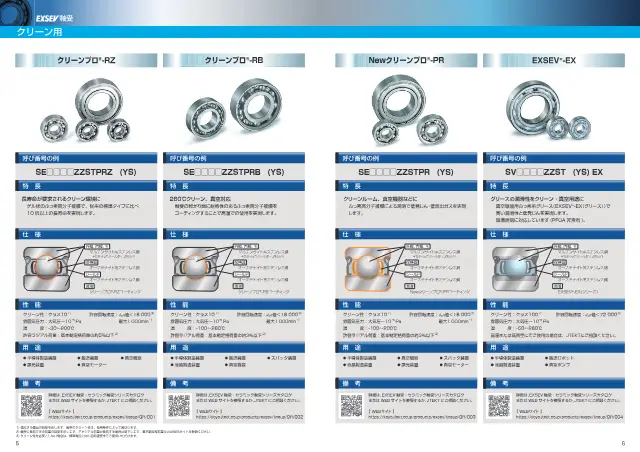

A reduced image of the relevant page is quoted from the document. Copyright belongs to JTEKT Corporation.Request removal
Specifications
| Cleanliness level | Class 10 |
|---|---|
| Atmospheric pressure | Atmospheric pressure to 10-5 Pa |
| Operating Temperature Range | -100～260 ℃ |
| Permissible rotational speed | dmn value < 18000, max. 1000 min-1 |
| Permissible radial load | Approx. 3% or less of basic dynamic load rating |
クリーンプロ® model comparison
Compare 2 models in the same series by specification.
| Model | Operating Temperature Range | Cleanliness level | Atmospheric pressure | Permissible rotational speed | Permissible radial load |
|---|---|---|---|---|---|
| クリーンプロ®-RB This product | -100～260 ℃ | Class 10 | Atmospheric pressure to 10-5 Pa | dmn value < 18000, max. 1000 min-1 | Approx. 3% or less of basic dynamic load rating |
| クリーンプロ®-RZ | -30～200 ℃ | Class 10 | Atmospheric pressure to 10-5 Pa | dmn value < 18000, max. 1000 min-1 | Approx. 5% or less of basic dynamic load rating |
How to choose Rolling Bearings
Points to check when selecting, with the values for this product (CleanPro®-RB).
-
1. Bore and housing bore dimensions
Select the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.
-
2. Dynamic load rating based on life calculation
The basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.
-
3. Margin for static and shock loads
The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.
-
4. Operating speed and lubrication method
The limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.
-
5. Precision grade and internal clearance
Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.
-
6. Materials and lubrication suited to the environment
This product: Operating Temperature Range -100～260 ℃For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.
This guide was written by AI based on the listed products' documents and specification items.
Description
Heat-resistant fluoropolymer coating applied to the rolling surfaces enables use at high temperatures. Made of martensitic stainless steel, also available in ceramic ball type.
Features
- Compatible with clean and vacuum environments at 260℃
- Heat-resistant fluoropolymer coating
Applications
- Semiconductor manufacturing equipment
- LCD manufacturing equipment
- Conveyor equipment
- Vacuum equipment
- Sputtering equipment
- Exposure equipment
- Vacuum motors
FAQ
- Q. In what environments can CleanPro®-RB be used?
- A. The heat-resistant fluoropolymer coating enables compatibility with clean and vacuum environments at 260℃. Cleanliness class is 10, atmospheric pressure range is atmospheric pressure to 10-5 Pa, and operating temperature range is -100 to 260 ℃.
- Q. What are the material and coating structure of CleanPro®-RB?
- A. The rolling surfaces are coated with a heat-resistant fluoropolymer. The bearing material is martensitic stainless steel.
- Q. What equipment is CleanPro®-RB used in?
- A. It is used in semiconductor manufacturing equipment, LCD manufacturing equipment, conveyor equipment, vacuum equipment, sputtering equipment, exposure equipment, and vacuum motors.
- Q. What are the rotational speed and load operating conditions for CleanPro®-RB?
- A. Permissible rotational speed is dmn value < 18000, maximum 1000 min-1. Permissible radial load is approximately 3% or less of the basic dynamic load rating.
- Q. Is CleanPro®-RB compatible with the ceramic ball type?
- A. Yes, it is also compatible with the ceramic ball type.
Written by AI based on the content of the source documents.
Source documents
- Catalog 特殊環境用 EXSEV 商品ガイド Open page 5
