SKF ConCentra Y-Bearings (Metric Shaft)
E2.YSP SB-2F / YSP SB-2F / YSPAG / SKF (Official website) / Listed on page 49 of the document
Metric shaft Y-bearings with ConCentra mechanism. Suitable for shaft diameters of 25 to 60 mm.
Last verified: (date the content was verified against the source document)

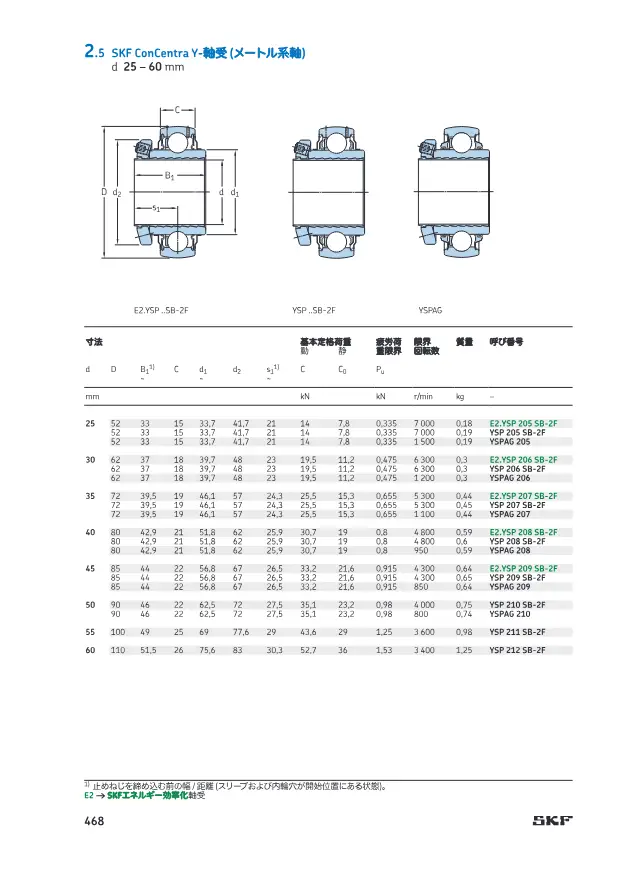

A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal
Specifications
| Shaft diameter d | 25～60 mm |
|---|---|
| Basic dynamic load rating Cr | 14～52.7 kN |
| Permissible rotational speed | 800～7,000 r/min |
E2.YSP SB-2F / YSP SB-2F / YSPAG model comparison
Compare 2 models in the same series by specification.
| Model | Shaft diameter d | Basic dynamic load rating Cr | Permissible rotational speed |
|---|---|---|---|
| SKF ConCentra Y-軸受 (インチ系軸) | 25.4～68.263 mm | 14～57.2 kN | 1,100～7,000 r/min |
| SKF ConCentra Y-軸受 (メートル系軸) This product | 25～60 mm | 14～52.7 kN | 800～7,000 r/min |
How to choose Bearing units
Points to check when selecting, with the values for this product (SKF ConCentra Y-Bearings (Metric Shaft)).
-
1. Match shaft diameter and dimensional system (metric/inch)
This product: Shaft diameter d 25～60 mmBearing units are offered in separate metric and inch series, and they are not interchangeable even when their appearance is similar. Listed products cover metric sizes of 3 to 150 mm and inch sizes of 1 to 4 in. First determine the shaft diameter and dimensional system, then select from the corresponding series.
-
2. Check the rated load against the operating conditions
This product: Basic dynamic load rating Cr 14～52.7 kNThe basic dynamic load rating Cr is used for rolling fatigue life calculations, and the basic static load rating C0r is used for evaluating stationary or shock loads. Listed Cr values range from 7.28 to 793 kN, and there are heavy-load products, such as half-ring types, with increased static load ratings.
-
3. Select a specification suited to the operating temperature
Standard greases and rubber seals deteriorate at high temperatures. High-temperature specifications are available in types with different upper temperature limits; for example, VA201 is rated at 130 to 250°C and VA228 at 260 to 350°C. In addition to the ambient temperature, check the permissible seal temperature and the sealed grease.
-
4. Choose the shaft fixing method for the application
Set-screw type is easy to install but requires control of the tightening torque. The method that fixes the bearing with a tapered bore and adapter sleeve provides a secure connection to the shaft and suits applications with reversing rotation or vibration. Check it together with the recommended shaft tolerance grade.
-
5. Verify the permissible rotational speed
This product: Permissible rotational speed 800～7,000 r/minBearing units have an upper limit on usable rotational speed depending on seal friction and the fixing method. The permissible speeds of listed products range widely from 6 to 12000 r/min, and low-speed heavy-load and high-speed units have very different characteristics. Confirm that the operating speed has sufficient margin.
-
6. Allow for shaft tilt during installation
In the spherical-fit design, the unit can absorb shaft tilt during installation up to a certain angle. However, in structures that allow regreasing, the permissible angle may be smaller. Listed products include an example of 2°. Check the permissible misalignment according to the accuracy of the base or frame.
This guide was written by AI based on the listed products' documents and specification items.
Description
Metric shaft Y-bearings fastened to the shaft with the ConCentra mechanism. Multiple sizes are listed in the shaft diameter range of 25 to 60 mm.
Features
- ConCentra fastening mechanism
- Energy-saving E2 specification available in the lineup
FAQ
- Q. For SKF ConCentra Y-Bearings (Metric Shaft), what is the range of compatible shaft diameters?
- A. Shaft diameter d ranges from 25 to 60 mm, and multiple sizes are listed.
- Q. What are the basic dynamic load rating and permissible rotational speed of SKF ConCentra Y-Bearings (Metric Shaft)?
- A. The basic dynamic load rating Cr is 14 to 52.7 kN, and the permissible rotational speed is 800 to 7,000 r/min.
- Q. How are SKF ConCentra Y-Bearings (Metric Shaft) fastened to the shaft?
- A. They are fastened to the shaft with the ConCentra mechanism.
- Q. In which series is the E2 energy-saving specification of SKF ConCentra Y-Bearings (Metric Shaft) offered?
- A. The energy-saving E2 specification is available in the lineup. Applicable series are E2.YSP SB-2F / YSP SB-2F / YSPAG.
Written by AI based on the content of the source documents.
