SKF ConCentra Y-Bearings (Inch Series Shafts)
E2.YSP SB-2F / YSP SB-2F / YSPAG / SKF (Official website) / Listed on page 50 of the document
Y-bearings for inch-series shafts with ConCentra mechanism, accommodating shaft diameters of 1 to 2 11/16 inches.
Last verified: (date the content was verified against the source document)

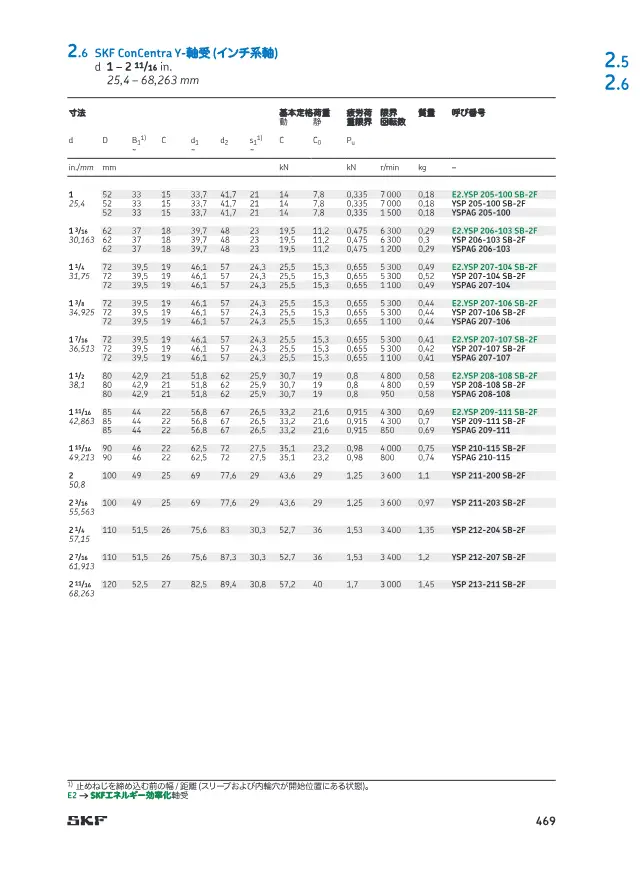

A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal
Specifications
| Shaft diameter d | 25.4～68.263 mm |
|---|---|
| Basic dynamic load rating Cr | 14～57.2 kN |
| Permissible rotational speed | 1,100～7,000 r/min |
E2.YSP SB-2F / YSP SB-2F / YSPAG model comparison
Compare 2 models in the same series by specification.
| Model | Shaft diameter d | Basic dynamic load rating Cr | Permissible rotational speed |
|---|---|---|---|
| SKF ConCentra Y-軸受 (インチ系軸) This product | 25.4～68.263 mm | 14～57.2 kN | 1,100～7,000 r/min |
| SKF ConCentra Y-軸受 (メートル系軸) | 25～60 mm | 14～52.7 kN | 800～7,000 r/min |
How to choose Bearing units
Points to check when selecting, with the values for this product (SKF ConCentra Y-Bearings (Inch Series Shafts)).
-
1. Match shaft diameter and dimensional system (metric/inch)
This product: Shaft diameter d 25.4～68.263 mmBearing units are offered in separate metric and inch series, and they are not interchangeable even when their appearance is similar. Listed products cover metric sizes of 3 to 150 mm and inch sizes of 1 to 4 in. First determine the shaft diameter and dimensional system, then select from the corresponding series.
-
2. Check the rated load against the operating conditions
This product: Basic dynamic load rating Cr 14～57.2 kNThe basic dynamic load rating Cr is used for rolling fatigue life calculations, and the basic static load rating C0r is used for evaluating stationary or shock loads. Listed Cr values range from 7.28 to 793 kN, and there are heavy-load products, such as half-ring types, with increased static load ratings.
-
3. Select a specification suited to the operating temperature
Standard greases and rubber seals deteriorate at high temperatures. High-temperature specifications are available in types with different upper temperature limits; for example, VA201 is rated at 130 to 250°C and VA228 at 260 to 350°C. In addition to the ambient temperature, check the permissible seal temperature and the sealed grease.
-
4. Choose the shaft fixing method for the application
Set-screw type is easy to install but requires control of the tightening torque. The method that fixes the bearing with a tapered bore and adapter sleeve provides a secure connection to the shaft and suits applications with reversing rotation or vibration. Check it together with the recommended shaft tolerance grade.
-
5. Verify the permissible rotational speed
This product: Permissible rotational speed 1,100～7,000 r/minBearing units have an upper limit on usable rotational speed depending on seal friction and the fixing method. The permissible speeds of listed products range widely from 6 to 12000 r/min, and low-speed heavy-load and high-speed units have very different characteristics. Confirm that the operating speed has sufficient margin.
-
6. Allow for shaft tilt during installation
In the spherical-fit design, the unit can absorb shaft tilt during installation up to a certain angle. However, in structures that allow regreasing, the permissible angle may be smaller. Listed products include an example of 2°. Check the permissible misalignment according to the accuracy of the base or frame.
This guide was written by AI based on the listed products' documents and specification items.
Description
Y-bearings for inch-series shafts that are secured to the shaft by the ConCentra mechanism. Multiple sizes are listed in the shaft diameter range of 25.4 to 68.263 mm.
Features
- ConCentra locking mechanism
- E2 energy-saving specification lineup
FAQ
- Q. What shaft diameters and basic dynamic load ratings are available for SKF ConCentra Y-Bearings (Inch Series Shafts)?
- A. Shaft diameter d accommodates 25.4 to 68.263 mm (1 to 2 11/16 inches). Basic dynamic load rating Cr is 14 to 57.2 kN.
- Q. What is the permissible rotational speed of SKF ConCentra Y-Bearings (Inch Series Shafts)?
- A. The permissible rotational speed is 1,100 to 7,000 r/min.
- Q. How are SKF ConCentra Y-Bearings (Inch Series Shafts) secured to the shaft?
- A. They are secured to the shaft by the ConCentra locking mechanism.
- Q. What series are available for SKF ConCentra Y-Bearings (Inch Series Shafts)?
- A. The series are E2.YSP SB-2F / YSP SB-2F / YSPAG. An E2 energy-saving specification lineup is offered.
Written by AI based on the content of the source documents.
Source documents
-
Catalog
SKF 転がり軸受カタログ 2 Y-軸受 (インサート軸受)
54 pages Open page 50
