SKF Reversible Jaw Puller TMMR F Series

Specifications

How to choose Puller

Points to check when selecting, with the values for this product (SKF Reversible Jaw Puller TMMR F Series).

1. 1. Allow margin in the required pulling force

   This product: Maximum Pull-out Force 17～60 kN

   Larger interference fits and larger parts require more force. The listed maximum pulling forces range from 6 to 500 kN, and hydraulic types are mainly used at around 100 kN and above. Also check whether a safety valve is provided to prevent overloading.

2. 2. Confirm the outer diameter falls within the grip width

   This product: Grip width 23～354 mm

   The outer diameter of the bearing or part to be removed must fall within the outer diameter range the claws can grip. Claw engagement tends to be shallow at the ends of the range, so select a model with some margin. When used as an internal puller, check the inner-diameter grip width.

3. 3. Confirm the claws reach the back of the part

   If the effective arm length is insufficient for the part thickness or its position from the shaft end, the claws will not engage the back face. For bearings far from the shaft end, models supplied with extension rods or extension pieces, or models with a large maximum reach from the shaft end, are suitable.

4. 4. Match the bearing bore and shaft diameter

   Back-face pullers and inner race pullers have defined applicable ranges for bearing bore and shaft diameter. Listed products cover bearing bores from 7 to 160 mm. Check the bore, outer diameter and width of the target bearing from its model number against the applicable range.

5. 5. Check the pulling travel and stroke

   Fully removing a bearing from the shaft requires travel equal to the fitted length. If the maximum stroke is insufficient, extension pieces must be added partway through the work, so select a model by comparing its stroke with the fitted length.

6. 6. Select the type to suit the mounting condition

   Inner race or forcing-type pullers suit cases where the outer ring is press-fitted into a housing. Back-face or collet-type pullers suit cases where there is little clearance behind the inner race. Jaw pullers suit cases where the outer circumference can be gripped. The suitable type therefore depends on the mounting condition.

This guide was written by AI based on the listed products' documents and specification items.

About Puller and all products

Description

Consists of a beam, spindle and two arms. Covers the standard type from TMMR 40F and the long-arm TMMR XL type. Lightweight and compact for field service use.

FAQ

Q. Can the SKF TMMR F Series reversible jaw puller pull from either the inner diameter or outer diameter side?

A. Yes, it can be used on both the inner diameter and outer diameter sides.

Q. What are the maximum pulling force and grip width ranges of the SKF TMMR F Series?

A. Maximum pulling force is 17 to 60 kN, grip width is 23 to 354 mm, and inner diameter side grip width is 59 to 384 mm.

Q. What applications is the SKF TMMR F Series suited for?

A. It can be used for pulling inner and outer rings of bearings and removing components located far from the shaft end.

Q. How is the corrosion resistance of the arms and beam of the SKF TMMR F Series?

A. The arms and beam are zinc-plated for corrosion resistance.

Q. Is a long-arm version available for the SKF TMMR F Series?

A. Yes, the long-arm TMMR XL type is available.

Written by AI based on the content of the source documents.

Source documents

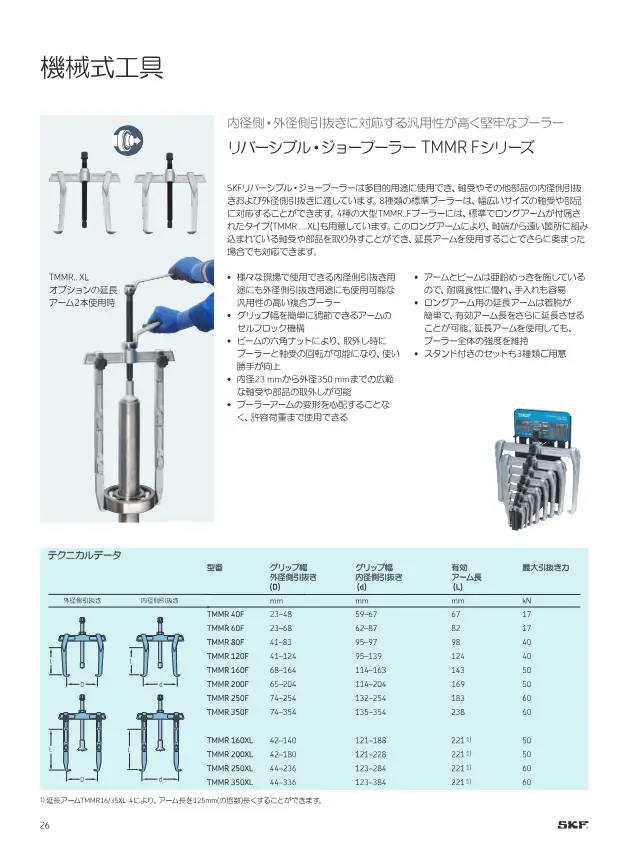

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 28
