SKF EasyPull Hydraulic Puller TMMA ..H

Specifications

How to choose Puller

Points to check when selecting, with the values for this product (TMMA 75H / TMMA 100H).

1. 1. Allow margin in the required pulling force

   This product: Maximum Pull-out Force 75～100 kN

   Larger interference fits and larger parts require more force. The listed maximum pulling forces range from 6 to 500 kN, and hydraulic types are mainly used at around 100 kN and above. Also check whether a safety valve is provided to prevent overloading.

2. 2. Confirm the outer diameter falls within the grip width

   The outer diameter of the bearing or part to be removed must fall within the outer diameter range the claws can grip. Claw engagement tends to be shallow at the ends of the range, so select a model with some margin. When used as an internal puller, check the inner-diameter grip width.

3. 3. Confirm the claws reach the back of the part

   If the effective arm length is insufficient for the part thickness or its position from the shaft end, the claws will not engage the back face. For bearings far from the shaft end, models supplied with extension rods or extension pieces, or models with a large maximum reach from the shaft end, are suitable.

4. 4. Match the bearing bore and shaft diameter

   Back-face pullers and inner race pullers have defined applicable ranges for bearing bore and shaft diameter. Listed products cover bearing bores from 7 to 160 mm. Check the bore, outer diameter and width of the target bearing from its model number against the applicable range.

5. 5. Check the pulling travel and stroke

   This product: Maximum Stroke 75～80 mm

   Fully removing a bearing from the shaft requires travel equal to the fitted length. If the maximum stroke is insufficient, extension pieces must be added partway through the work, so select a model by comparing its stroke with the fitted length.

6. 6. Select the type to suit the mounting condition

   Inner race or forcing-type pullers suit cases where the outer ring is press-fitted into a housing. Back-face or collet-type pullers suit cases where there is little clearance behind the inner race. Jaw pullers suit cases where the outer circumference can be gripped. The suitable type therefore depends on the mounting condition.

This guide was written by AI based on the listed products' documents and specification items.

About Puller and all products

Description

Safety valve prevents overload, and spring-loaded centre point positions the tool on the shaft centre. TMMA 75H is for light-duty work, and TMMA 100H is for general-purpose work.

FAQ

Q. Which operations are the SKF EasyPull Hydraulic Puller TMMA 75H and TMMA 100H suitable for?

A. TMMA 75H is for light-duty work and TMMA 100H is for general-purpose work. Applications include bearing removal and pulling components off shafts.

Q. What are the maximum pulling force, stroke, grip width (outer diameter) and mass of the TMMA ..H series?

A. Maximum pulling force is 75 to 100 kN, maximum stroke is 75 to 80 mm, maximum grip width (outer diameter) is 200 to 250 mm, and total mass is 7.0 to 13.2 kg.

Q. Are the TMMA 75H / TMMA 100H supplied pre-assembled and ready for immediate use, and do they have overload protection?

A. Yes, they are a hydraulic pulling tool with pre-assembled hydraulic cylinder, pump and puller, ready for immediate use. The hydraulic mechanism is built in, and the safety valve prevents overload.

Q. What accessories are supplied with the TMMA 75H / TMMA 100H, and how is it installed?

A. An extension piece and a nose piece are supplied. It is mounted on the shaft centre using the spring-loaded centre point.

Written by AI based on the content of the source documents.

Source documents

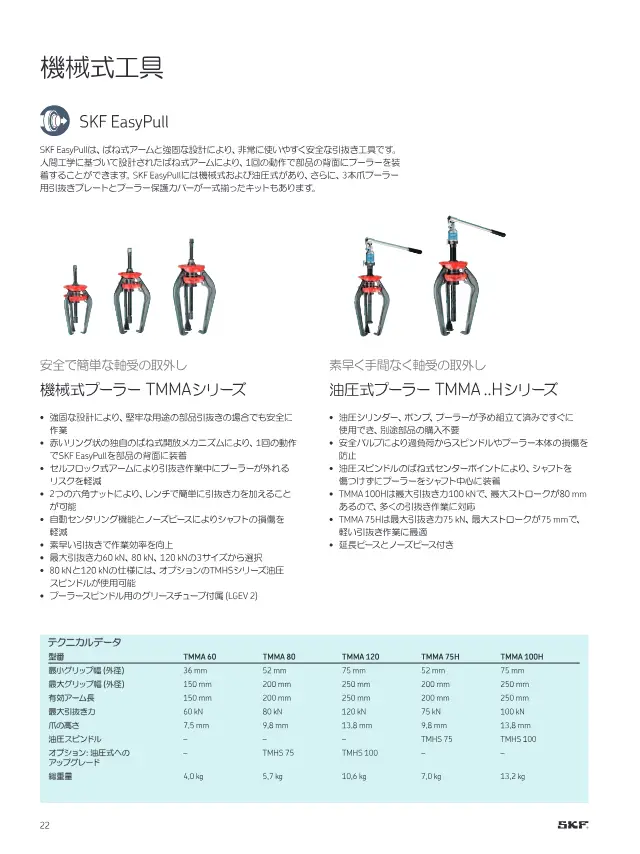

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 24
