Hydraulic Puller Set TMMA ..H/SET

Specifications

How to choose Puller

Points to check when selecting, with the values for this product (TMMA 75H/SET / TMMA 100H/SET).

1. 1. Allow margin in the required pulling force

   Larger interference fits and larger parts require more force. The listed maximum pulling forces range from 6 to 500 kN, and hydraulic types are mainly used at around 100 kN and above. Also check whether a safety valve is provided to prevent overloading.

2. 2. Confirm the outer diameter falls within the grip width

   The outer diameter of the bearing or part to be removed must fall within the outer diameter range the claws can grip. Claw engagement tends to be shallow at the ends of the range, so select a model with some margin. When used as an internal puller, check the inner-diameter grip width.

3. 3. Confirm the claws reach the back of the part

   If the effective arm length is insufficient for the part thickness or its position from the shaft end, the claws will not engage the back face. For bearings far from the shaft end, models supplied with extension rods or extension pieces, or models with a large maximum reach from the shaft end, are suitable.

4. 4. Match the bearing bore and shaft diameter

   Back-face pullers and inner race pullers have defined applicable ranges for bearing bore and shaft diameter. Listed products cover bearing bores from 7 to 160 mm. Check the bore, outer diameter and width of the target bearing from its model number against the applicable range.

5. 5. Check the pulling travel and stroke

   Fully removing a bearing from the shaft requires travel equal to the fitted length. If the maximum stroke is insufficient, extension pieces must be added partway through the work, so select a model by comparing its stroke with the fitted length.

6. 6. Select the type to suit the mounting condition

   Inner race or forcing-type pullers suit cases where the outer ring is press-fitted into a housing. Back-face or collet-type pullers suit cases where there is little clearance behind the inner race. Jaw pullers suit cases where the outer circumference can be gripped. The suitable type therefore depends on the mounting condition.

This guide was written by AI based on the listed products' documents and specification items.

About Puller and all products

Description

Includes a 3-jaw pulling plate and a transparent puller protective cover. Suitable for removing spherical roller bearings, CARB toroidal roller bearings, and similar bearings. All components are stored in a dedicated case.

FAQ

Q. What types of bearings are TMMA 75H/SET and TMMA 100H/SET suitable for removing?

A. They include a 3-jaw pulling plate and a transparent puller protective cover, and are suitable for removing spherical roller bearings, CARB toroidal roller bearings, and similar bearings.

Q. What components are included in the TMMA ..H/SET set?

A. It includes a 3-jaw pulling plate and a transparent puller protective cover. All components are stored in a dedicated case.

Q. What applications can the TMMA ..H/SET be used for?

A. It can be used for removing spherical roller bearings, CARB toroidal roller bearings, and pulleys and flywheels.

Q. What effects does the protective cover have on the TMMA 75H/SET and TMMA 100H/SET?

A. The protective cover prevents scattering of fragments and allows visual confirmation of the removal process.

Q. What are the dedicated case dimensions and total mass of the TMMA 75H/SET and TMMA 100H/SET?

A. Case dimensions are 600 × 235 × 225 / 680 × 320 × 270 mm, and total mass is 15.0 to 31.6 kg.

Written by AI based on the content of the source documents.

Source documents

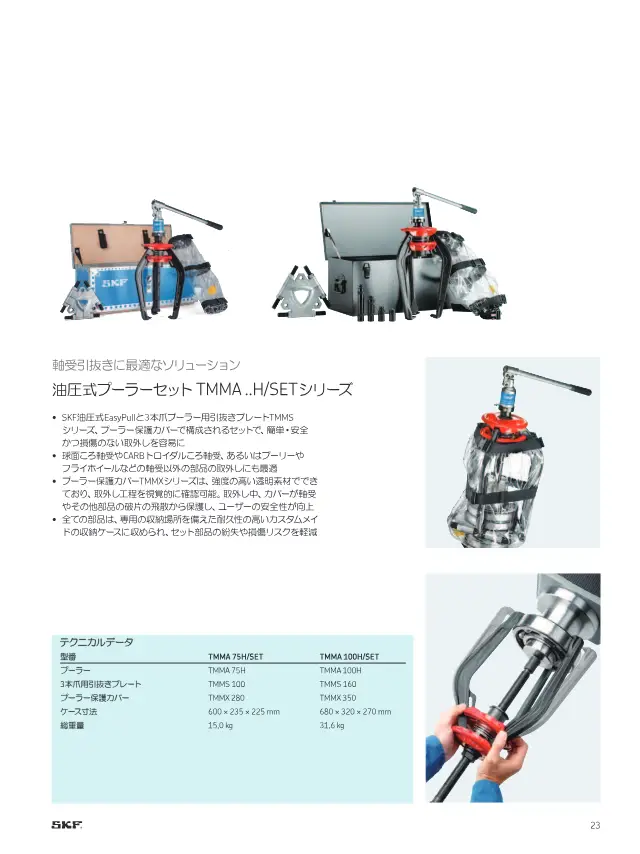

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 25
