Sealed Double-Row Angular Contact Ball Bearings (2Z, 2RS1)
3200 A-2Z〜3315 A-2Z 他 / SKF (Official website) / Listed on page 55 of the document
Sealed double-row angular contact ball bearings with bore diameters of 10 to 75 mm. Shielded and sealed versions are listed.
Last verified: (date the content was verified against the source document)

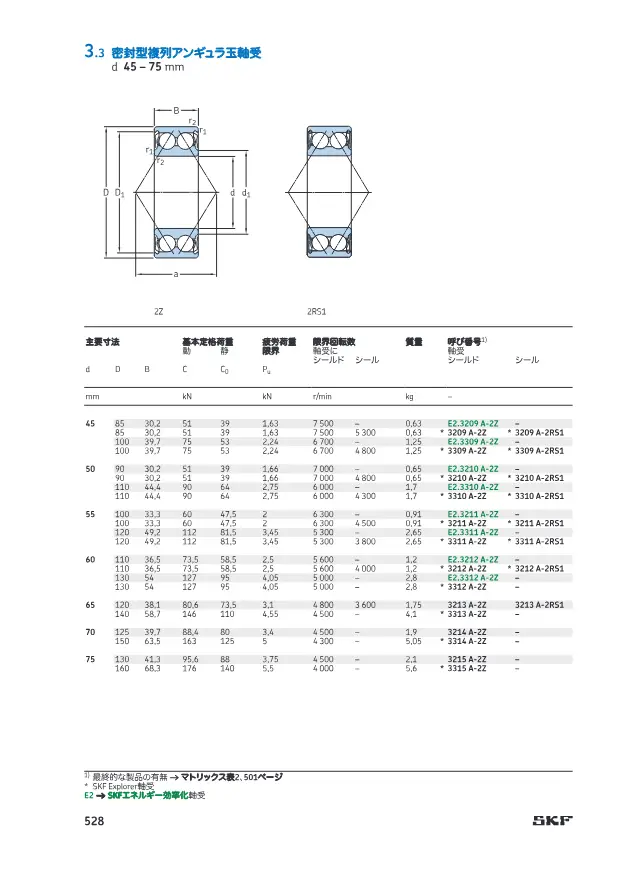

A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal
Specifications
| Inner diameter d | 10 to 75 mm |
|---|---|
| Outer diameter D | 30 to 160 mm |
| Width B | 14.3 to 68.3 mm |
How to choose Rolling Bearings
Points to check when selecting, with the values for this product (Sealed Double-Row Angular Contact Ball Bearings (2Z, 2RS1)).
-
1. Bore and housing bore dimensions
This product: Inner diameter d 10 to 75 mmSelect the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.
-
2. Dynamic load rating based on life calculation
The basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.
-
3. Margin for static and shock loads
The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.
-
4. Operating speed and lubrication method
The limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.
-
5. Precision grade and internal clearance
Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.
-
6. Materials and lubrication suited to the environment
For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.
This guide was written by AI based on the listed products' documents and specification items.
Description
Dimension tables for sealed double-row angular contact ball bearings with bore diameters of 10 to 75 mm. Limiting speeds are listed for shielded (2Z) and sealed (2RS1) versions. Includes energy efficient bearings (E2).
Features
- Choice of shielded (2Z) or sealed (2RS1) versions
- Includes SKF energy efficient (E2) bearings
FAQ
- Q. What are the bore and outside diameter ranges for SKF sealed double-row angular contact ball bearings (2Z, 2RS1)?
- A. The bore diameter d is 10 to 75 mm, the outside diameter D is 30 to 160 mm, and the width B is 14.3 to 68.3 mm.
- Q. For SKF sealed double-row angular contact ball bearings (3200 A-2Z to 3315 A-2Z and others), can I choose between shielded and sealed versions?
- A. Yes, both shielded (2Z) and sealed (2RS1) versions are listed.
- Q. Do SKF sealed double-row angular contact ball bearings (2Z, 2RS1) include energy efficient bearings?
- A. Yes, they include SKF energy efficient (E2) bearings.
- Q. Where can I check the limiting speeds of SKF sealed double-row angular contact ball bearings (2Z, 2RS1)?
- A. Limiting speeds for shielded (2Z) and sealed (2RS1) versions are listed in the dimension tables.
Written by AI based on the content of the source documents.
