Single-Row Angular Contact Ball Bearings 7200 BECBP / 7200 BEP Series

7200 系 (SKF Explorer 含む) / SKF (Official website) / Listed on page 33 of the document

Single-row angular contact ball bearings with bore diameters of 10 to 190 mm. Variations in contact angle, cage, and clearance are selected by model number.

Last verified: (date the content was verified against the source document)

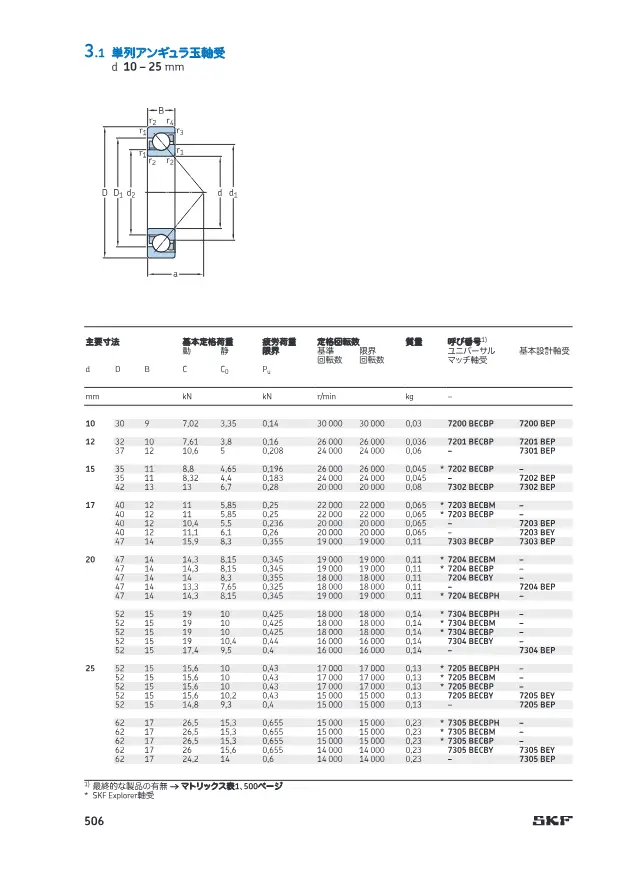

Single-Row Angular Contact Ball Bearings 7200 BECBP / 7200 BEP Series on page 33 of SKF "アンギュラ玉軸受 (SKF 製品カタログ抜粋)"
Source: SKF「アンギュラ玉軸受 (SKF 製品カタログ抜粋)」page 33
A reduced image of the relevant page is quoted from the document. Copyright belongs to SKF.Request removal

Specifications

Inner diameter d 10 to 190 mm
Outer diameter D 30 to 400 mm
Basic dynamic load rating Cr 7.02 to 442 kN
Basic static load rating C0r 3.35 to 600 kN
Reference rotational speed 1 900 to 30 000 r/min
Mass 0.03 to 48.5 kg

How to choose Rolling Bearings

Points to check when selecting, with the values for this product (Single-Row Angular Contact Ball Bearings 7200 BECBP / 7200 BEP Series).

  1. 1. Bore and housing bore dimensions

    This product: Inner diameter d 10 to 190 mm

    Select the bore diameter d to match the shaft seat, the outside diameter D to match the housing bore, and the width B to suit the installation space. Main dimensions are standardized in ISO and JIS dimension series, so interchangeable products can be found by boundary dimension designation. For tapered roller bearings, also check the assembled width T; for thrust bearings, also check the height H.

  2. 2. Dynamic load rating based on life calculation

    This product: Basic dynamic load rating Cr 7.02 to 442 kN

    The basic dynamic load rating Cr is the reference value for calculating rated life. Verify that the required life is met using the equivalent load during operation and the rotational speed. For ball bearings, life is proportional to the cube of the load ratio, so providing load margin greatly extends life.

  3. 3. Margin for static and shock loads

    This product: Basic static load rating C0r 3.35 to 600 kN

    The basic static load rating C0r is the allowable standard for permanent deformation generated at the rolling elements and raceways under stationary or low-speed conditions. For applications with oscillating motion or shock loads, confirm that a static safety factor against the maximum load is secured using C0r.

  4. 4. Operating speed and lubrication method

    The limiting speed differs by lubrication method, and separate values are given for grease lubrication and oil lubrication. Confirm that the normal operating speed does not exceed the limiting value, and in high-speed ranges also consider cage material and precision grade. The reference speed can also be consulted as a thermal guideline.

  5. 5. Precision grade and internal clearance

    Precision grades (P0, P6, P5, etc.) indicate rotational accuracy and dimensional accuracy; for high-precision applications such as machine tool spindles, select higher grades. Internal clearance (C2, CN, C3, etc.) is selected to allow for changes caused by interference fit and temperature differences during operation.

  6. 6. Materials and lubrication suited to the environment

    For corrosive, high-temperature, vacuum, or clean environments, select specifications such as rings and rolling elements made of stainless steel or ceramics, or solid lubricants and fluorine grease for vacuum use. Check the operating temperature range, low dust generation, and whether food-grade grease registration applies against the application conditions.

This guide was written by AI based on the listed products' documents and specification items.

About Rolling Bearings and all products

Description

This document lists dimensions, basic dynamic load ratings, basic static load ratings, reference speeds, masses, and designation numbers for single-row angular contact ball bearings with bore diameter d = 10 to 190 mm. Designation numbers consist of suffixes for internal design, external design, cage, lubrication, and tolerance class and internal axial clearance. SKF Explorer bearings are also indicated.

Features

  • Internal design options with contact angles of 25°/30°/40°, among others
  • Cage design options including brass, PA66, and PEEK
  • Tolerance classes such as P5/P6 and internal axial clearance options
  • SKF Explorer bearings indicated

FAQ

Q. What is the range of bore and outer diameters for the single-row angular contact ball bearings in the 7200 BECBP / 7200 BEP series?
A. The bore diameter d is 10 to 190 mm, and the outside diameter D is 30 to 400 mm.
Q. What are the basic dynamic and basic static load ratings of the 7200 series single-row angular contact ball bearings?
A. The basic dynamic load rating Cr is 7.02 to 442 kN, and the basic static load rating C0r is 3.35 to 600 kN.
Q. What are the reference speed and mass ranges for the 7200 BECBP / 7200 BEP series?
A. The reference speed is 1 900 to 30 000 r/min, and the mass is 0.03 to 48.5 kg.
Q. How can the contact angle, cage, and tolerance/clearance be selected in the 7200 BECBP / 7200 BEP series?
A. The contact angle can be selected from internal designs such as 25°/30°/40°. Cage designs include brass, PA66, and PEEK, and tolerance classes such as P5/P6 are available, along with selectable axial internal clearance. These are chosen using the suffixes of the designation number.
