Hydraulic Puller Kit TMHC 110E

Specifications

How to choose Puller

Points to check when selecting, with the values for this product (TMHC 110E).

1. 1. Allow margin in the required pulling force

   This product: Maximum Pull-out Force 100 kN

   Larger interference fits and larger parts require more force. The listed maximum pulling forces range from 6 to 500 kN, and hydraulic types are mainly used at around 100 kN and above. Also check whether a safety valve is provided to prevent overloading.

2. 2. Confirm the outer diameter falls within the grip width

   This product: Grip width 50～170 mm

   The outer diameter of the bearing or part to be removed must fall within the outer diameter range the claws can grip. Claw engagement tends to be shallow at the ends of the range, so select a model with some margin. When used as an internal puller, check the inner-diameter grip width.

3. 3. Confirm the claws reach the back of the part

   If the effective arm length is insufficient for the part thickness or its position from the shaft end, the claws will not engage the back face. For bearings far from the shaft end, models supplied with extension rods or extension pieces, or models with a large maximum reach from the shaft end, are suitable.

4. 4. Match the bearing bore and shaft diameter

   Back-face pullers and inner race pullers have defined applicable ranges for bearing bore and shaft diameter. Listed products cover bearing bores from 7 to 160 mm. Check the bore, outer diameter and width of the target bearing from its model number against the applicable range.

5. 5. Check the pulling travel and stroke

   This product: Maximum Stroke 80 mm

   Fully removing a bearing from the shaft requires travel equal to the fitted length. If the maximum stroke is insufficient, extension pieces must be added partway through the work, so select a model by comparing its stroke with the fitted length.

6. 6. Select the type to suit the mounting condition

   Inner race or forcing-type pullers suit cases where the outer ring is press-fitted into a housing. Back-face or collet-type pullers suit cases where there is little clearance behind the inner race. Jaw pullers suit cases where the outer circumference can be gripped. The suitable type therefore depends on the mounting condition.

This guide was written by AI based on the listed products' documents and specification items.

About Puller and all products

Description

Grips the back side of the bearing inner ring for removal. With extension rods, supports a pulling length of up to 245 mm. The jaw puller can be used as a 3-jaw or 2-jaw puller.

FAQ

Q. What is the maximum pulling length of the TMHC 110E, and how can the jaw puller claws be used?

A. With extension rods, it supports a pulling length of up to 245 mm. The jaw puller can be used as a 3-jaw or 2-jaw puller.

Q. What types of parts can the TMHC 110E be used to remove?

A. It can be used to remove bearing inner rings and components near shaft ends. It removes bearing inner rings by gripping the back side of the ring.

Q. What are the specifications of the TMHC 110E, such as maximum pulling force, stroke, and grip width?

A. Maximum pulling force is 100 kN, maximum stroke is 80 mm, and maximum distance from shaft end is 250 mm. Grip width is 50 to 170 mm, and mass is 13.5 kg.

Q. How is the TMHC 110E mounted on a shaft?

A. It is mounted at the shaft center using a spring-loaded center point.

Written by AI based on the content of the source documents.

Source documents

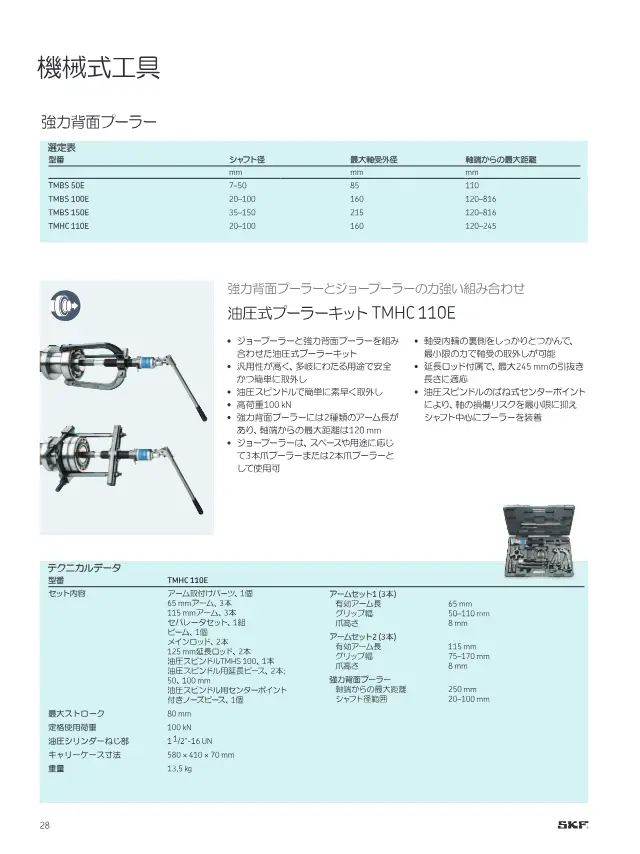

• Catalog SKFメンテナンス製品と潤滑製品 204 pages Open page 30
