Hydraulic Jaw Puller Kit TMHP 10E

Specifications

How to choose Puller

Points to check when selecting, with the values for this product (TMHP 10E).

1. 1. Allow margin in the required pulling force

   This product: Maximum Pull-out Force 100 kN

   Larger interference fits and larger parts require more force. The listed maximum pulling forces range from 6 to 500 kN, and hydraulic types are mainly used at around 100 kN and above. Also check whether a safety valve is provided to prevent overloading.

2. 2. Confirm the outer diameter falls within the grip width

   The outer diameter of the bearing or part to be removed must fall within the outer diameter range the claws can grip. Claw engagement tends to be shallow at the ends of the range, so select a model with some margin. When used as an internal puller, check the inner-diameter grip width.

3. 3. Confirm the claws reach the back of the part

   If the effective arm length is insufficient for the part thickness or its position from the shaft end, the claws will not engage the back face. For bearings far from the shaft end, models supplied with extension rods or extension pieces, or models with a large maximum reach from the shaft end, are suitable.

4. 4. Match the bearing bore and shaft diameter

   Back-face pullers and inner race pullers have defined applicable ranges for bearing bore and shaft diameter. Listed products cover bearing bores from 7 to 160 mm. Check the bore, outer diameter and width of the target bearing from its model number against the applicable range.

5. 5. Check the pulling travel and stroke

   This product: Maximum Stroke 80 mm

   Fully removing a bearing from the shaft requires travel equal to the fitted length. If the maximum stroke is insufficient, extension pieces must be added partway through the work, so select a model by comparing its stroke with the fitted length.

6. 6. Select the type to suit the mounting condition

   Inner race or forcing-type pullers suit cases where the outer ring is press-fitted into a housing. Back-face or collet-type pullers suit cases where there is little clearance behind the inner race. Jaw pullers suit cases where the outer circumference can be gripped. The suitable type therefore depends on the mounting condition.

This guide was written by AI based on the listed products' documents and specification items.

About Puller and all products

Description

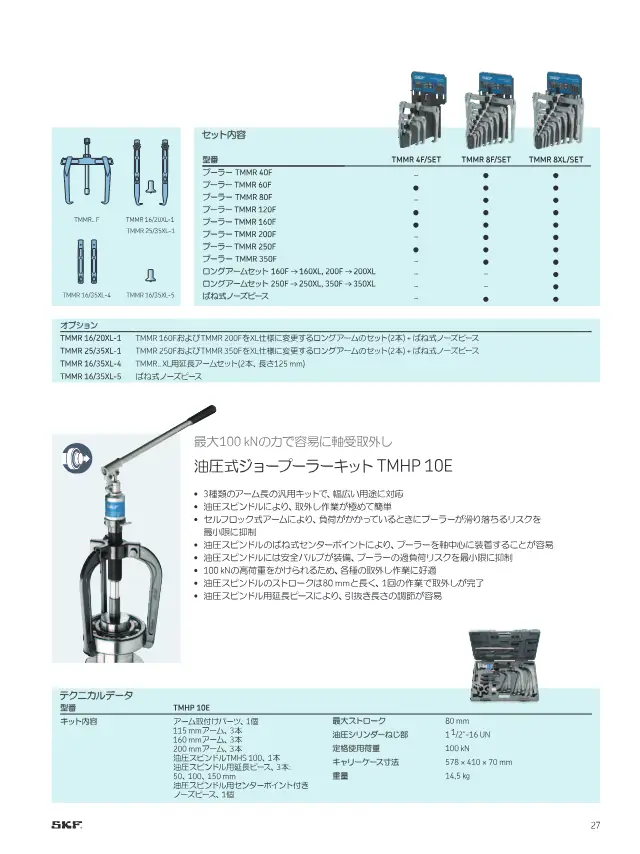

Consists of a hydraulic spindle and self-locking arms. The stroke of 80 mm is long, so removal is easily completed in a single operation. Pulling length can be adjusted with extension pieces.

FAQ

Q. What are the maximum pulling force and maximum stroke of the TMHP 10E?

A. The maximum pulling force is 100 kN and the maximum stroke is 80 mm. The long stroke makes it easier to complete removal in a single operation.

Q. What objects and applications can the TMHP 10E be used for?

A. It can be used for removing various bearings and for pulling shafts and parts.

Q. Can the pulling length of the TMHP 10E be adjusted?

A. Yes, the pulling length can be adjusted with extension pieces.

Q. What are the main components and safety features of the TMHP 10E?

A. It consists of a hydraulic spindle and self-locking arms. The hydraulic spindle is equipped with a safety valve.

Q. What are the case dimensions and weight of the TMHP 10E?

A. The case dimensions are 578 × 410 × 70 mm and the weight is 14.5 kg.

Written by AI based on the content of the source documents.
